My Hoops at Maker Faire

Here are a couple of detail pictures and videos of the hoop prototypes I brought to Maker Faire. I’ll have a longer post later in the week with all the cool stuff I saw and played with while wandering around the faire grounds. I wasn’t able to shoot great video at the faire because of the noise, so the two I included were shot in my hotel room (hooping indoors is quite a challenge!). I’m hoping to bring these pieces to a hoop jam and have some other hoop dancers try them out soon.

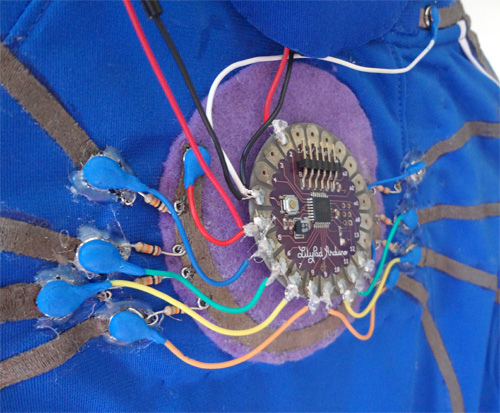

I mostly wore the sound making outfit around during the weekend, as my light up one was hard to see anywhere but inside the darkened Fiesta Hall. It was fun to wander through the crowds and do mini demos along the way. This is a slight variation on the beatbox hoop prototype I blogged about previously – instead of a hacked toy I used a LilyPad Arduino to make notes for each of the conductive patches. Many thanks to my fellow Seacoast Maker Alex Nunn for helping me with some last minute code on this one before I left for the faire. The nice thing about this particular jacket is that the board is completely modular; sewing snaps allow you to remove the LilyPad from the traces and speaker and pop in another one in the same configuration. I also used Sugru to add a finishing touch and a little extra protection to the connection between the snaps and the wires going to the LilyPad. I stopped by the Sugru booth and they loved the use of their product in wearables.




The first prototype is a little messy with some hot glue to make sure things didn’t fall apart with all the movement. The outfits held up well after two days of hooping, with only minor repairs needed.

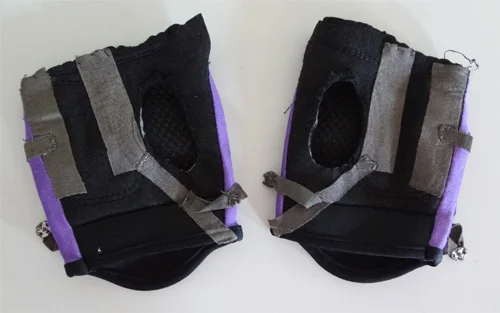

I modded some gloves with conductive patches so that I could create effects while hooping on my hands as well. They snapped right into the sleeves of the jacket.

This is a completed version of my early experiment with LEDs. A small battery holder, conductive fabric, and LEDs make it a nice blink and bling example of my hoop-as-a-switch concept.

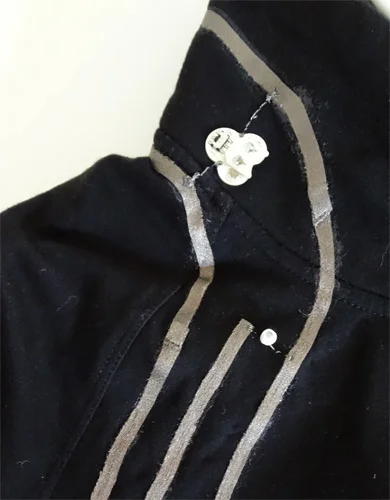

This little battery holder from Aniomagic worked well on the collar of this jacket. Unfortunately, it looks like they don’t make them anymore.
